AUTOMATION



  • One instrument for all sample volumes (10 μl – 10 ml)

  • Kits and protocols for a huge variety of sample materials (Body Fluid, Blood, Tissue, Serum/Plasma)

  • High throughput (4,000 samples/day)

  •  12-pin head (large sample vol.: 1 – 10 ml) 60 min (gDNA from 10ml Blood); 70 min (viral DNA/RNA from 10ml serum/plasma)

  • 24-pin head (medium sample vol.: 200 μl – 2 ml) 60 min (gDNA from 3ml Blood); 60 min (viral DNA/RNA from 2ml serum/plasma)

  • 96-pin head (small sample vol.: 10 μl – 400 μl) 60 min (gDNA from 350ul Blood); 60 min (viral DNA/RNA from 300ul serum/plasma)


  • 1 – 12 samples per run

  • sample sizes up to 1000 μl

  • chemagic Kits and protocols for a huge variety of sample materials (Body Fluid, Blood, Tissue,Serum/Plasma)



The Chemagen kits utilize proprietary magnetic bead technology to isolate nucleic acids with both high yield and purity.

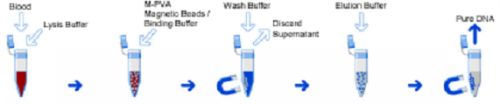

Their scalability together with protocols and equipment facilitate quick preparations from very small to large amounts of sample material.  The removal of conventional spin steps from kit protocols, the high magnetite content of the beads as well as the easy handling make these kits highly adaptable to automation but also for manual use.  A general scheme for the isolation process is shown.

Kit

Sample

Volume/Amount

Yield

chemagic Viral RNA / DNA Kit

chemagic Plasmid Mini Kit

chemagic Isodirect mRNA Kit

chemagic DNA Plant Kit

chemagic DNA Food Kit

chemagic DNA Tissue Kit

chemagic Bac Kit 100

chemagic Genomic Kit (Genomic 100)

chemagic Genomic Kit (Genomic 10

chemagic Sequence Cleanup Kit

chemagic PCR Cleanup Kit

Serum, plasma, or blood

200 ul

Bacteria culture

1 - 3 ml

up to 8 ug

Cell lines, animal tissue, or plant tissue

100 mg

2 ug

Plant tissue

20 mg

up to 30 ug

Food sample

200 mg

0.1 - 10 ug

Animal tissue or cells

10 mg

24 - 40 ug

Gram-positive or -negative bacteria

100 ul

2 - 6 ug

Fresh or frozen blood, plasma, serum, buffy coat, or saliva

100 - 200 ul

2 - 4 ug

Fresh or frozen blood, plasma, serum, buffy coat, or saliva

1 - 20 ul

ca. 95%

PCR reaction

50 ul  - a few ml

0.2 - 0.4 ug

PCR reaction

50 ul - a few ml

ca. 95%
